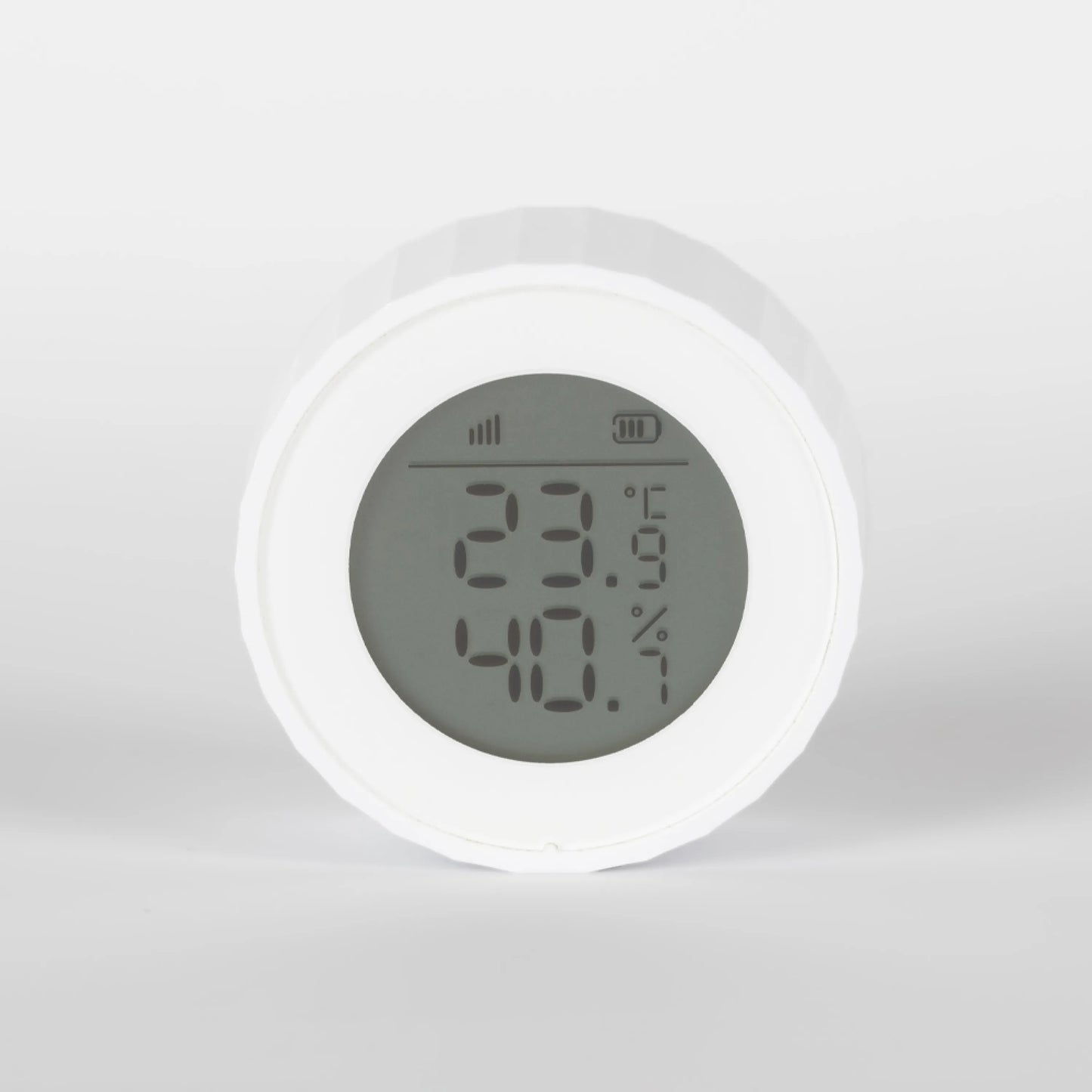

  • vanemar temperature and humidity sensor front image.
1 7

Vanemar Basic Package

Vanemar Basic Package

Idéal pour les bateaux avec cabine

$749.00
$988.00 $749.00
Promotion Épuisé

Protégez votre bateau avec le Pack Vanemar Basic, comprenant un système d’alarme pour bateau, un suivi de localisation GPS et une surveillance de la batterie. Comprend des capteurs de porte et de mouvement, le contrôle de la température et de l’humidité, ainsi qu’une alarme de cale haute eau. Une solution idéale tout-en-un pour la sécurité et la surveillance de votre bateau.






Afficher tous les détails

Your Gateway to Smart Boating

Upgrade your boat with the Vanemar, the ultimate smart boat monitoring system for enhanced control and efficiency.

Cut Costs

Cut Costs

Optimize boat usage and reduce expenses

Data History

Data History

Explore detailed reports of boat performance.

Remote Control

Remote Control

Arm/disarm your system and manage digital switches remotely.

Total Boat Security, Achieved in Just Minutes

Designed for your boat's safety, the Vanemar Gateway enables immediate tracking and easy protection. With its straightforward setup and companion wireless sensors, it paves the way for guarding against numerous threats, ensuring your vessel is secure and monitored at all times.

Quick & Easy Setup

Quick & Easy Setup

Plug, Play, Protect: Get your Vanemar Gateway up and running in just minutes. A straightforward installation process means you can start monitoring your boat without any technical hassle.

Easily Expandable

Easily Expandable

Enhance your boat's security system effortlessly by adding wireless sensors to the Gateway. Customize your setup to suit your specific needs and enjoy comprehensive coverage

All-Around Threat Detection

All-Around Threat Detection

ith the Vanemar Gateway, directly monitor vital aspects like your boat’s location and battery status. Expand this protection effortlessly by adding wireless sensors, enhancing your defense against intrusion, high water, smoke, and other potential threats

Track Your Boat, Anytime, Anywhere

Keep a constant eye on your boat with GPS location tracking, trip history, and geofence features, ensuring your boat stays where it should be.

Trip History

Trip History

Review your boat’s routes and locations.

Geofence

Geofence

Set and monitor safe zones for your boat.

Restricted Areas

Restricted Areas

Get alerts if your boat enters or leaves designated areas.

Extend your system wıth sensors

Monitor battery health, detect unauthorized entry, and prevent water damage. Stay alert with motion detection, manage power with our smart plug, and get early fire warnings. Our sensors also maintain ideal temperature and humidity, ensuring a secure and comfortable experience.

1 6
Technical Specs
Power Input
12/24 DC, 3.8W, Waterproof Connector
Supported Batteries
12V/24V DC
Backup Battery
3450 mAh Li-ion battery (Up to 8 hours)
Power Consumption
<100mA Idle / ~320mA Peak @12V
Wi-Fi
2.4 GHZ, IEEE 802.11 b/g/n
Zigbee
Zigbee 3.0
Accelerometer
3 Axis, Up to 8g
Anti-Tamper
Proximity Sensor
SIM
Integrated Global Simcard
Cellular
Quadband UMTS/HSDPA/HSPA+/LTE
GNSS
GPS/GLONASS/Beidou
Sound Output
~85db@10cm Audible Alarm
Operational Temperature
-10°C ~ +60°C
Antennas
External GPS / Internal GSM (LTE)
Gateway Dimensions
150 X 150 X 40 mm
Working Voltage
DC3V (CR123A/CR17335 battery)
Alarm indication
Red LED indicator
Alarm sound
~75dB (at 1m straight ahead)
Networking
ZigBee
Wireless Networking Distance
≤100 m (in the open area) ≤328 feet
Working Environment
0°C ~ +50°C / 32°F ~ +122°F
Working Humidity
~95%RH
Battery life
Up to 2 years
Dimensions
ø69.0xH27.6mm / ø2.72×1.09inches
Protection
IP67
Working Voltage
DC3V (2 x AAA batteries)
Detection Distance
<15 mm / <0.6 inches
Networking
ZigBee
Wireless Networking Distance
≤100 m (in the open area) ≤328 feet
Working Environment
-10°C ~ +50°C / -14°F ~ +122°F
Working Humidity
~95%RH
Sensor Body Dimensions
76x36.6x16.5mm / 2.99x1.44x0.65inches
Magnet Dimensions
76x13.9x16.5mm / 2.99x0.55x0.65inches
Working Voltage
DC3V (CR123A/CR17335 battery)
Detecting Angle
90°
Detecting Distance
Up to 12m at 25°C / 39 feet at 77°F (distance varies with temperature)
Networking
ZigBee
Wireless Networking Distance
≤100 m (in the open area) ≤328 feet
Working Environment
-10°C ~ +50°C / -14°F ~ +122°F
Working Humidity
~95%RH
Outline Dimension
65x65x28.5mm / 2.56x2.56x1.12inches
Working Voltage
DC3V (CR2450 battery)
Networking
ZigBee
Wireless Networking Distance
≤100 m (in the open area) ≤328 feet
Working Environment
-10°C ~ +50°C / -14°F ~ +122°F
Working Humidity
~95%RH
Outline Dimension
60x60x20.8mm / 2.36x2.36x0.82inches

Frequently Asked Questions

What is the Vanemar Gateway and its core functions?

The Vanemar Yacht Devices Gateway is the central hub for the Vanemar ecosystem, equipped with an internal GPS receiver for constant location tracking, wireless communication technologies to interface with Vanemar Sensors, and a built-in rechargeable battery for uninterrupted operation.

How does the Vanemar Gateway maintain connectivity?

The Vanemar Boat Gateway is equipped with a GSM module that works with over 500 operators in 200 countries, providing extensive coverage. It ensures that wherever you are, as long as there's GSM service, your Vanemar Boat Gateway stays connected.

What occurs when the Vanemar Gateway is outside GSM coverage?

If the Vanemar Boat Gateway exits the GSM coverage area, it switches to offline mode unless you set up a back up Wi-Fi connection such as satellite internet(e.g. Starlink). If Vanemar Boat Gateway went to offline mode, you'll be notified of this status change via Vanemar app. In offline mode, it continues to record all data and you can still access the Gateway through Bluetooth, if nearby. Once it reconnects to GSM, it will update the Vanemar app with all the recorded data, ensuring you don’t miss any critical information.
If you would like to stay connected outside of GSM coverage ensuring no connection loss: Learn How to Set a Backup Wi-Fi Connection for Your Vanemar Gateway.

Can the Vanemar Gateway monitor my boat’s battery status?

Yes, the Vanemar Yacht Devices Gateway continuously measures the connected battery’s voltage and will send low battery alerts, ensuring you’re always informed about your power supply.

What happens if my boat's power supply is interrupted?

The Vanemar Boat Gateway has its own backup battery that can keep it operational for up to 8 hours after a power cut, instantly alerting you of the power loss.

Does the Vanemar Boat Gateway have any protective features against tampering?

Yes, Vanemar Gateway has an innovative anti-tamper system on the back, which continuously measures the distance from its mounting point and will trigger an alarm if an interference is detected.

How many sensors can connect to the Gateway?

You can connect up to 20 wireless sensors directly to the Vanemar Gateway for various monitoring purposes. Additionally, there is no limit to the number of devices that can be connected through the Vanemar NMEA2000 Boat Adapter, providing extensive data collection capabilities for your maritime needs.

Can the Vanemar Gateway access data from existing devices on my boat like engines, tanks,etc?

Yes, the Vanemar Boat Gateway, using the Vanemar NMEA 2000 Boat Adapter, can access data from your boat's existing NMEA 2000 network. It can display a variety of information such as engine performance metrics, tank levels, and environmental conditions. For detailed guidance on NMEA 2000 network setup and the types of data you can view, visit our blog: What is NMEA 2000 and How to Tell If Your Boat Has It.

What actions does the Vanemar Gateway take in alarm situations?

When the Vanemar Gateway detects critical situations like high water levels or unauthorized access, it sends instant notifications through the app. It intelligently monitors whether these alerts are seen. If they remain unnoticed for 60 seconds, the system automatically initiates a phone call from our servers to ensure you're informed about the urgent situation on your boat.
